It’s no secret electric reliability on Bainbridge Island needs to be improved. In finding solutions, PSE committed to exploring new technologies. Our proposed plan is a unique solution designed for Bainbridge Island – combining new technologies and grid infrastructure to ensure safe, dependable power for families and businesses for years to come. We will partner with the community to implement these solutions.

PSE's proposed solution

Our proposed plan is a unique solution crafted for Bainbridge Island. The project package combines new technologies and grid infrastructure to ensure safe, dependable power for families and businesses for years to come.

These projects are designed to:

  • Improve electric service reliability, reducing the frequency and duration of power outages for customers on Bainbridge Island.
  • Successfully meet the increasing power needs of Bainbridge Island for years to come.
  • Support the electrification of the Washington State Ferries.
  • Deploy new technologies that will help postpone building a new substation. These technologies maximize opportunities for conservation and innovation and may help reduce our carbon footprint.

PSE will continue to invest in projects to improve reliability on the distribution system that serves neighborhoods.

power pole icon

New transmission line and rebuild the aging Winslow Tap to improve reliability

plus icon
battery icon

New 3.3 MW battery energy storage system to add additional capacity

plus icon
thermometer and home icons

Targeted conservation and demand response tools to reduce demand

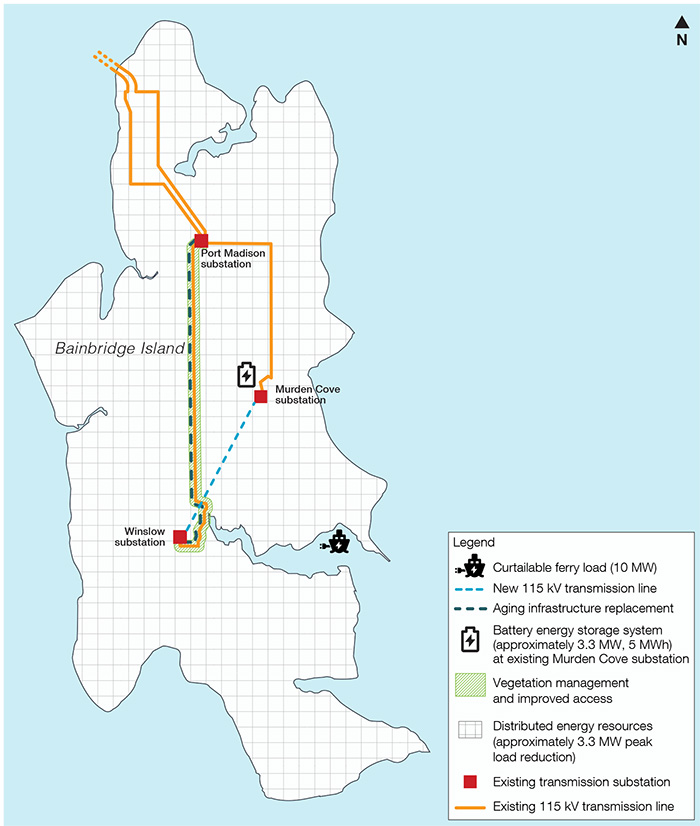

a map complied of solutions package made to improve Bainbridge Island reliability and electric grid.
Click map to enlarge

Electric reliability on Bainbridge Island needs to be improved. PSE’s customers have been vocal in asking us to find solutions that improve reliability, meet this community’s growing energy needs and align with the community’s values.

PSE recently completed a detailed assessment on Bainbridge Island’s electric system needs. The Needs Assessment identified known and new issues.

Read the Needs Assessment

PSE and third-party experts then developed a Solutions Report to analyze potential solutions to meet these needs. The report studied the feasibility of both traditional wires solutions and innovative non-wires solutions.

Read the Solutions Report

The Need Assessment identified three key findings:

  • Poor transmission reliability
  • Aging infrastructure
  • Growth: ferry electrification and increased demand for power

Poor transmission reliability

A graphic illustrating why the power goes out at substations and what parts of the Island lose power.

The Needs Assessment affirmed that the island has a transmission reliability need. The study highlighted that Bainbridge Island customers experience more frequent and longer outages than the average PSE customer, and nearly half of those outage minutes are due to issues with the transmission system. Some specific challenges to reliability include:

  • Trees: Bainbridge transmission lines are heavily exposed to trees, and 64 percent of outages are caused by trees.
  • Radial transmission lines: Nearly two-thirds of Bainbridge customers are at risk of a prolonged outage. This is because their area is served by a substation – either Winslow or Murden Cove substation – that’s fed by a single transmission line with no back-up.
    • Customers served by the Winslow substation have the worst reliability on the island, and secondarily Murden Cove substation.
    • Nearly 70 percent of transmission customer minutes of service interruptions were from the Winslow Tap transmission line that feeds the Winslow substation.
graph of average number of outages
Click to enlarge

Aging infrastructure

Inspections determined that portions of the Winslow Tap circa-1960 transmission line are nearing the end of its useful life and needs to be replaced. In addition, the Winslow Tap is in a heavily vegetated corridor with difficult terrain, which makes finding and repairing outages challenging and results in longer outages.

a map of the existing Winslow Tap transmission line corridor including the three substations with two photos of wooden transmission poles on the right hand side.
Existing Winslow Tap transmission line corridor

Substation capacity need

Ferry electrification and the community’s growing energy needs are driving the need for additional substation capacity, particularly during winter peaks.

  • Increasing demand: The population of Bainbridge Island has increased significantly over the last few decades and electric demand has changed. Even with energy conservation, the electric demand residents place on the system has dramatically increased.
  • Ferry electrification: Soon Washington State Ferries will be electrified to cut carbon emissions and reduce pollution, which will require a charging system at Bainbridge Island and creates even more demand.
a graphic that displays to two houses one labeled 1960 with household appliances. The other house is labeled today and inside the house its shows more household appliances including a car. This graphics illustrates the increase of electric demand.



The solutions report studied several alternatives to address the needs on Bainbridge Island, including traditional wires alternatives and non-wires alternatives. Non-wire alternatives are alternatives that are not traditional poles, wires and substations.These are described in detail in the Solutions Report.

Read the Solutions Report here

Non-Wires Alternatives appendix

Battery Storage appendix



Our proposed solution contains elements of both wires and non-wires alternatives. Read on to learn more.

An image of the cover page for the Bainbridge Island Electric System Solutions Report developed by PSE.
Review the solutions report

We're investing in transmission infrastructure that will make Bainbridge Island's electric grid more resilient and reduce the impact of any single outage by focusing on redundancy.

New transmission line

  • We'll add the "missing link" transmission line between the Winslow and Murden Cove substations to create a transmission "loop." This means each substation will be connected to two transmission lines. If one line goes out, the other line will still feed the substation and provide power to customers.
  • Community involvement for the routing of this transmission line project is underway! Learn more at psebainbridge.participate.online.

Rebuild the aging Winslow Tap

  • We'll also replace aging infrastructure and improve the utility corridor on Winslow Tap, a critical transmission line that serves the south end of the island.
a map complied of solutions package made to improve Bainbridge Island reliability and electric grid.
Click map to enlarge

PSE is committed to partnering with our customers for a better energy future. Batteries and distributed technologies are an important part of that equation for our Bainbridge Island customers.

To address the growth that’s straining the island’s distribution system and balance the values of the community to limit infrastructure, PSE is proposing to postpone a new substation and instead:

  • Install a utility-scale batteryenergy storage system at the Murden Cove substation. The 3.3 MW battery will add capacity to the system by supplying electricity during winter peak periods when demand is high.
  • Implement innovative conservation and demand response programsthat help lower customer demand in various ways. This may include partnerships with customers to lower their energy use during periods of peak demand by using smart thermostats and other tools. Learn more about our plan for deploying targeted conservation and demand response on Bainbridge Island by watching this webinar.
  • We'll work with Washington State Ferries to curtail their use during peak periods.

If all of the non-wire solutions are successfully implemented, we’ll postpone the need for a new substation for at least 10 years.

PSE's goal is to improve your reliability and modernize the grid. We're in the early stages of these projects. While they each have their own timeline with opportunities for involvement, we anticipate having:

Targeted conservation/demand response tools deployed

2020-2030

Battery in-service

2022

Winslow Tap rebuilt

2023

Transmission line loop built

2024

Graphic of when different community engagement activities will take place. Caption contains more information.In 2020, the community can participate in information sessions and the transmission line routing process, and PSE will coordinate with Winslow Tap property owners. Between 2020 and 2030, community members can participate in conservation and demand response programs, and PSE will continue ongoing outreach by individual projects.
